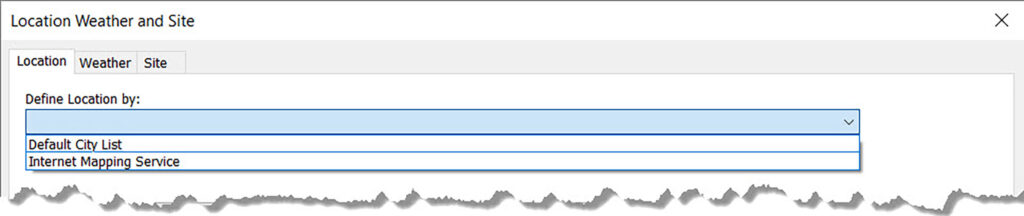

Revit Riot! by CADLearning | Apr 15, 2021 Calling all BIM nerds and Revit users! This one’s for you! Answer these 10 questions, and you’ll be the Biggest Brain in The Blast! Username 1. After one design option in an option set has been selected as the option to use in the design, how can you incorporate it into the model? make it the primary option make it the primary option and accept it make it the active option make it the active option and accept it 2. When defining a project location, which option as shown in the image uses actual weather data from a weather station? Default City List Internet Mapping Service 3. When working on a workshared project, how can you transfer the changes in your local copy to the central model? save the project and changes will automatically be transferred use the Relinquish All Mine tool use the Synchronize and Modify Settings tool use the Reload Latest tool 4. Which of the following statements best describes what happens in Revit when a change is made to a building model in one view? The family is saved, and a backup is created with the older version of the family. The change is propagated to ALL views. The project is saved, and a backup is created with the older version of the model. The change is applied ONLY to that particular view. 5. In the accompanying image, when you use the top shape handle to change the height of the curtain wall, what is the most likely reason Revit has warned that the highlighted walls overlap? This is the default whenever you place any curtain wall on top of another wall. The brick wall type does NOT allow another wall to be embedded. The Automatically Embed type property is NOT selected for the curtain wall. all of the above 6. Which tool can be used to show a detail component in front of all other detail components? Bring Forward Bring to Front Show Hidden Lines Remove Hidden Lines 7. Which parameters can be used to drive the value of a dimension in a project? Family Parameters Project Parameters Shared Parameters Global Parameters 8. Which of the following statements regarding creating levels is TRUE? Levels can be created in plan views. Levels must be attached to grids. A floor plan view must be created before a level can be created. Enter an Offset value and then sketch on an existing level to create a new level at the specified distance from it. 9. Where does the information in schedules come from? Text entered by user Linked text files Linked Excel files Parameters associated with elements 10. TRUE or FALSE: The two kinds of view-specific elements in Revit are annotation and detail. TRUE FALSE 1 out of 10 Time is Up! Time's up Submit a Comment Cancel replyYou must be logged in to post a comment.
